Product Description
Solar submersible pump

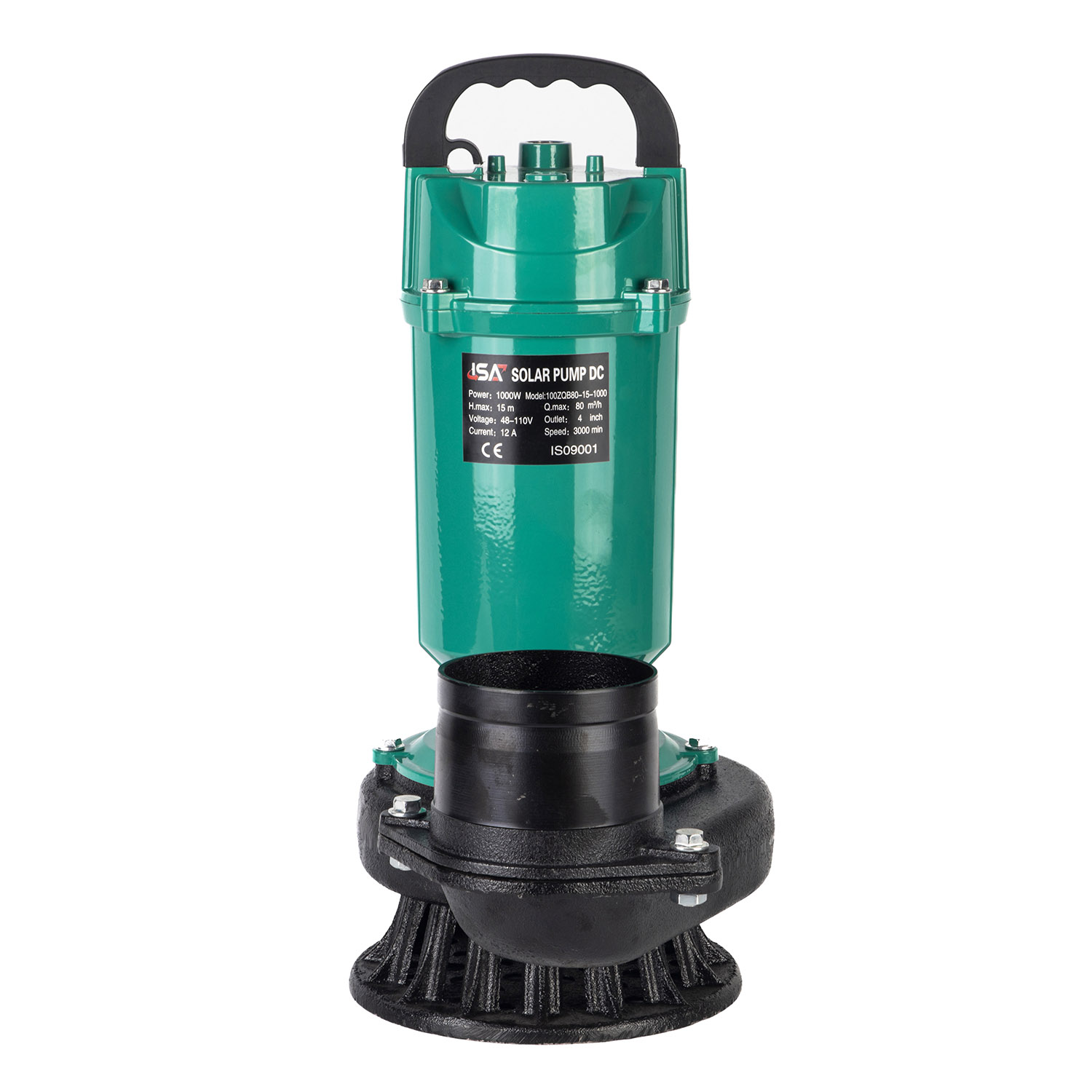

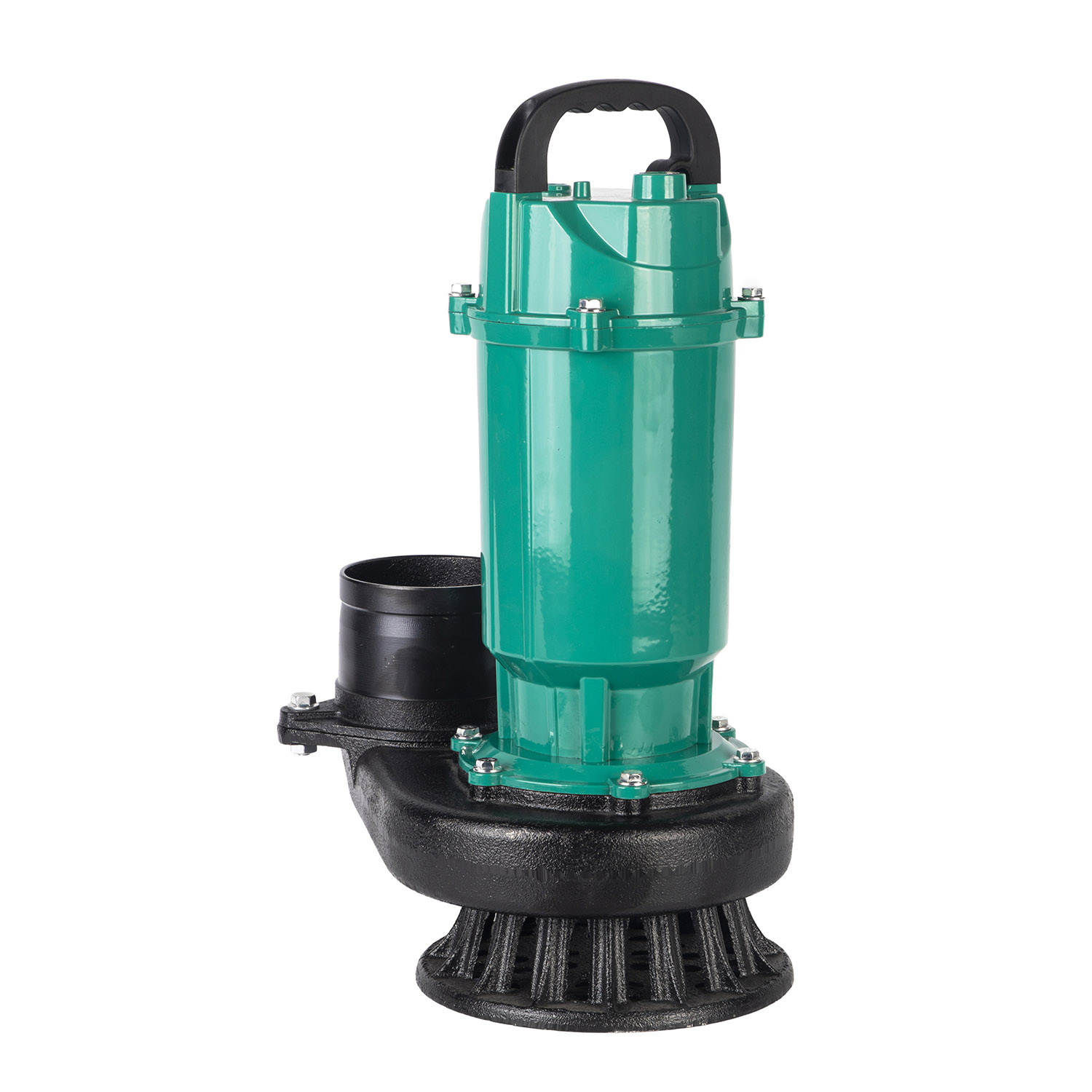

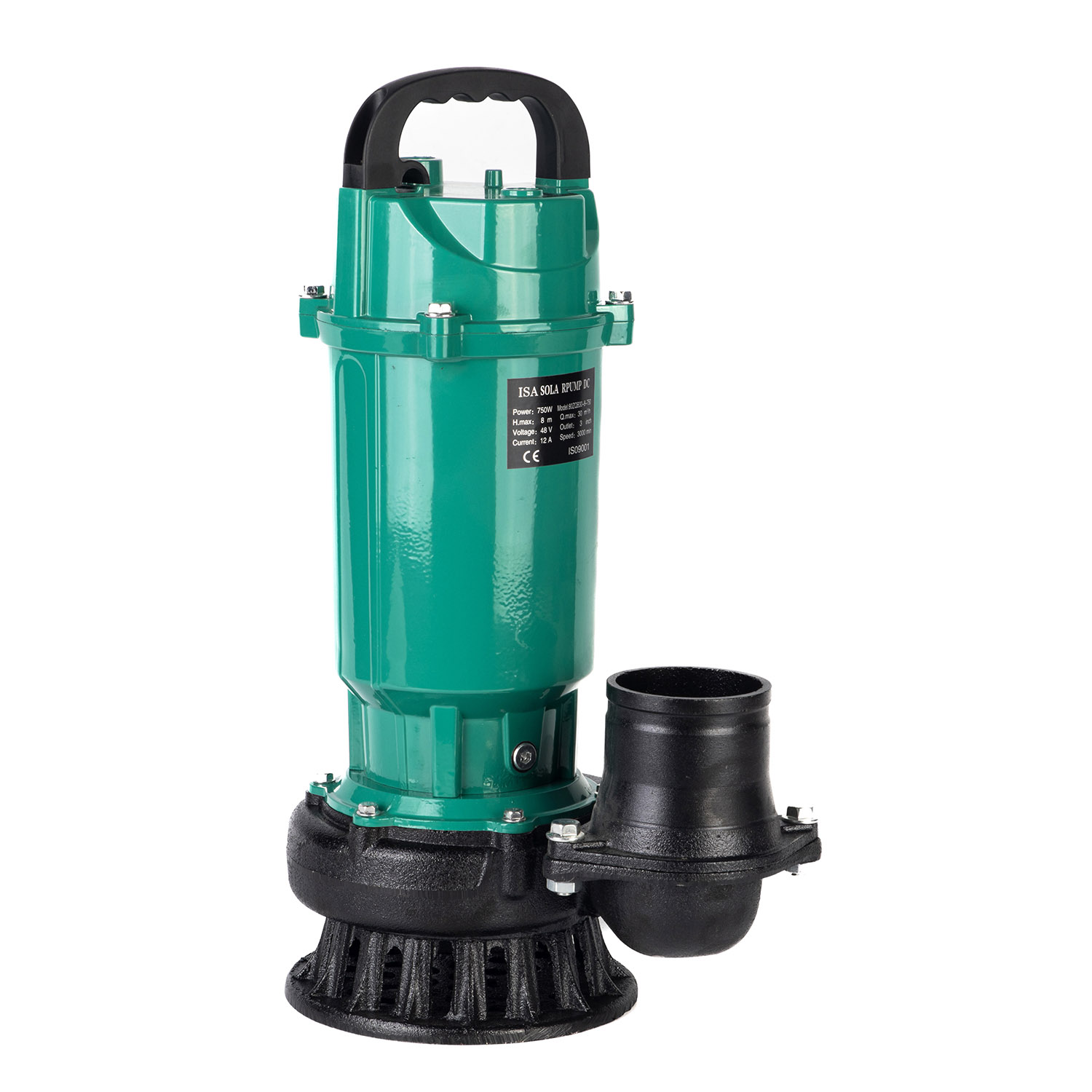

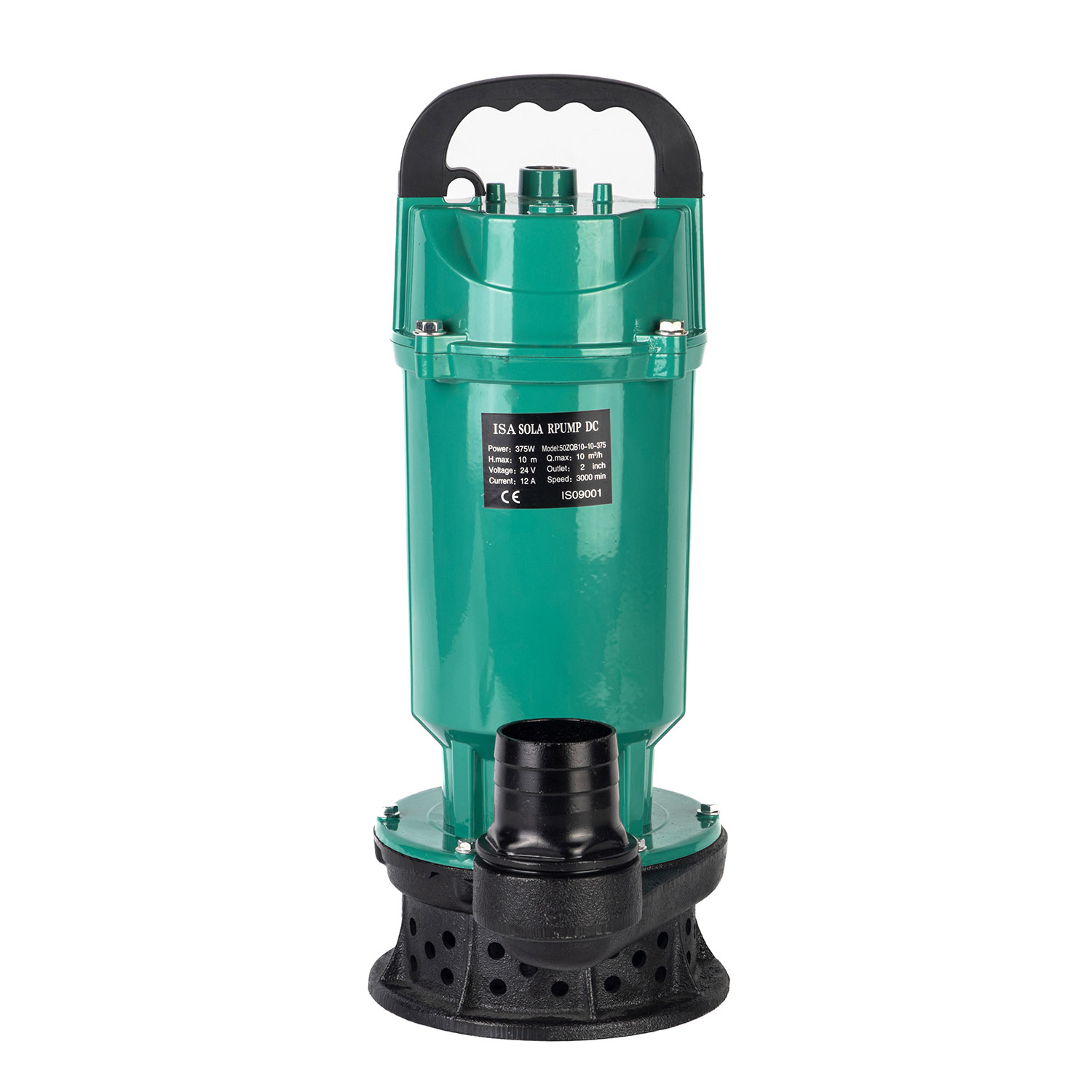

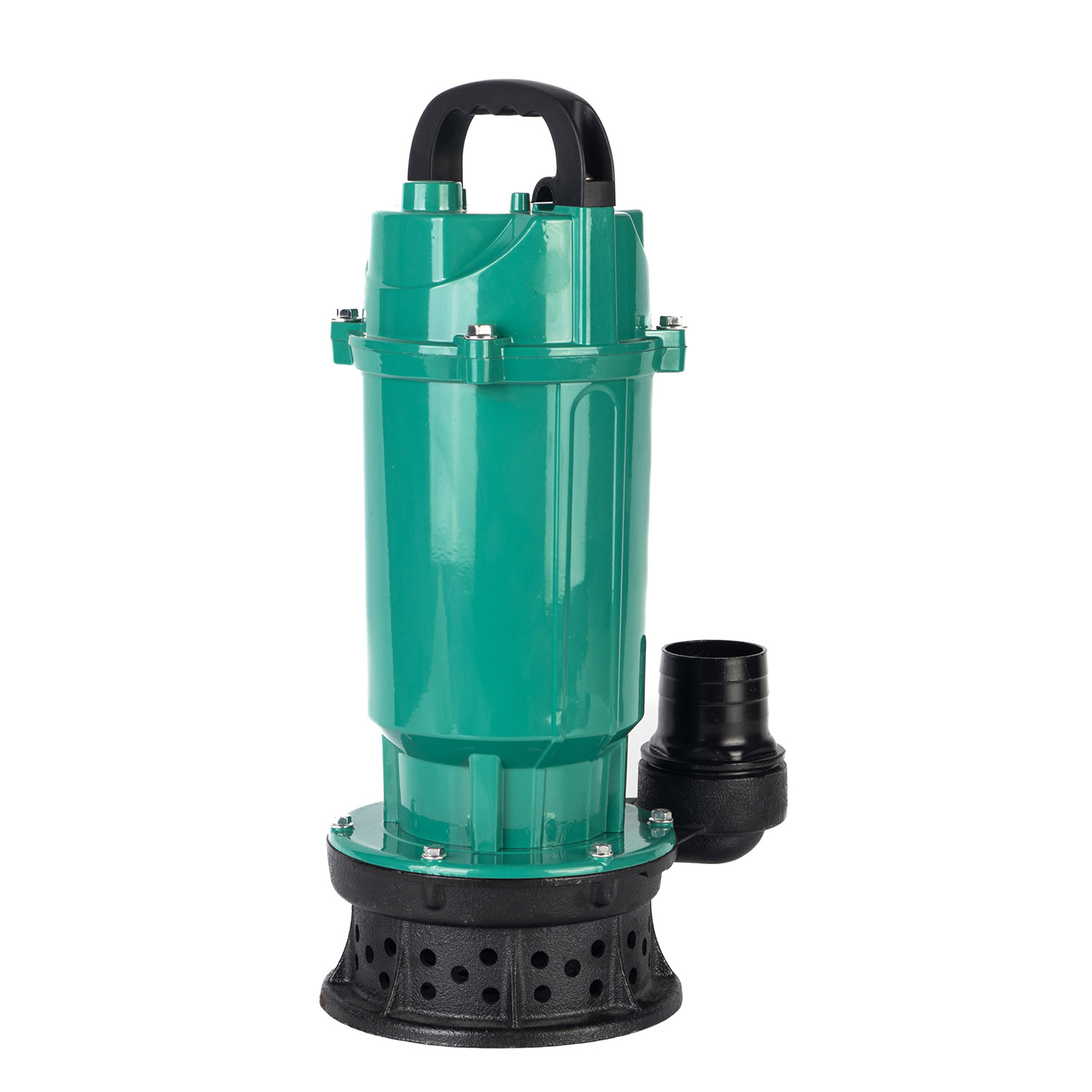

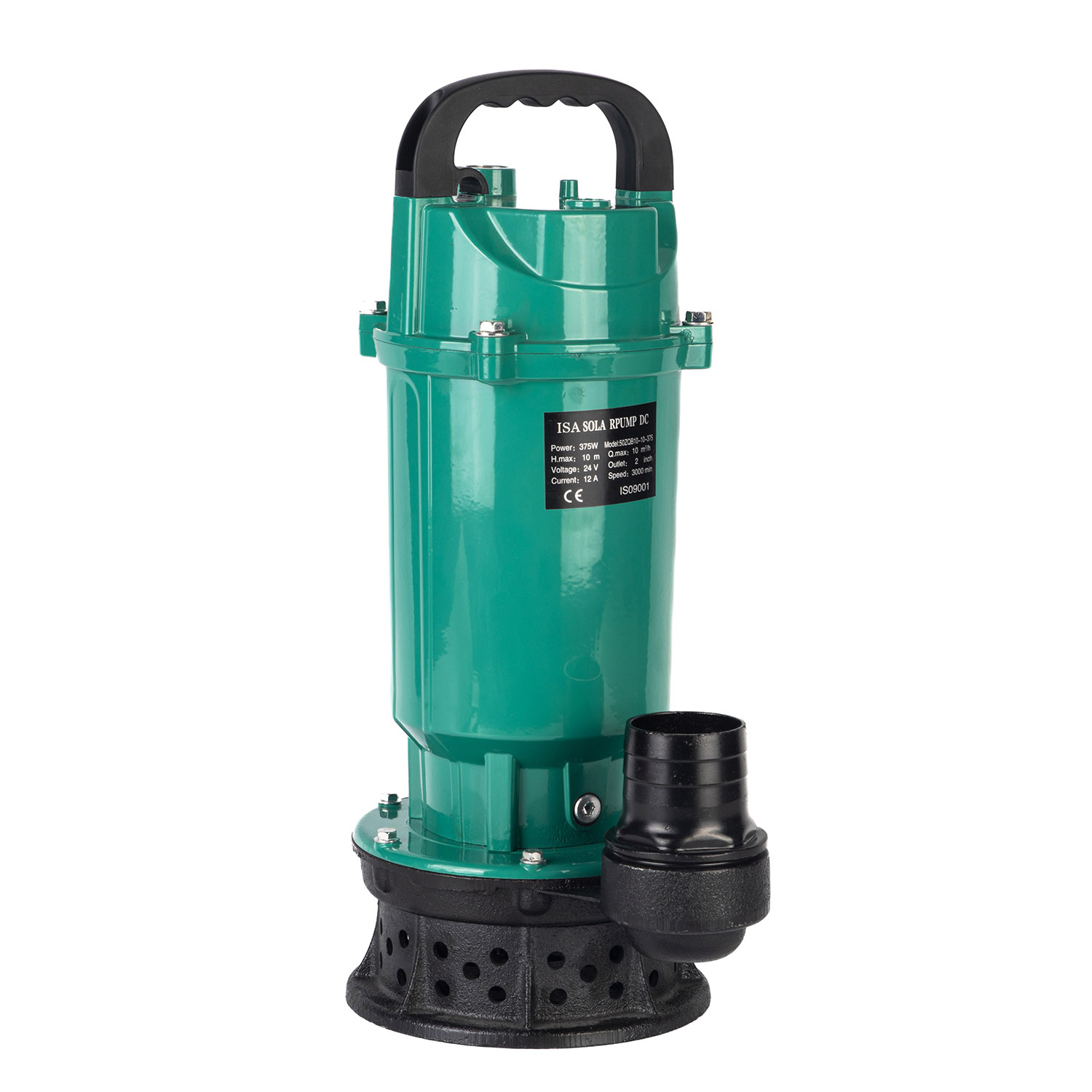

Solar Submersible Pump
DC Photovoltaic Powered – Zero Electricity Cost, Maximum Reliability
Product Overview
YISA solar submersible pump is a high-efficiency water lifting solution powered entirely by solar energy. Designed for off-grid and remote areas, this pump converts DC power from solar panels directly into water flow – no batteries, no inverters, no electricity bills. It combines the durability of a deep well submersible pump with the sustainability of solar technology, making it the ideal choice for farms, livestock farms, and rural water supply projects.
Key Advantages
| Feature | Benefit |
|---|---|
| 100% Solar Powered | Runs from sunrise to sunset. The stronger the sunlight, the more water you get. Zero operating cost. |
| DC Brushless Motor | Higher efficiency, lower maintenance, and longer lifespan compared to AC pumps. |
| Automatic Operation | No manual intervention needed. The pump starts and stops automatically based on sunlight intensity. |
| Corrosion-Resistant Materials | Stainless steel 304/316 construction, suitable for sandy or slightly corrosive well water. |
| Dry Run Protection | Built-in sensor prevents motor damage when water level is too low. |
| Wide Voltage Range | Compatible with 24V/48V/72V/110V DC solar arrays, adaptable to different panel configurations. |
Technical Specifications (Typical Model)
| Parameter | Value |
|---|---|
| Power Range | 0.5kW – 22kW |
| Max Head | Up to 200m |
| Max Flow Rate | Up to 50 m³/h |
| Outlet Size | 1.25″ – 4″ |
| Protection Grade | IP68 (fully submersible) |
| Cable Length | 10m (customizable) |
Other specifications available upon request.
Applications
Agricultural Irrigation – Reliable water supply for crops in remote fields without grid electricity.
Livestock Watering – Automatic filling of water troughs for cattle, sheep, and poultry.
Rural Village Water Supply – Clean drinking water for households in off-grid areas.
Desert Greening & Afforestation – Sustainable pumping for tree planting projects.
Fish Pond Aeration / Water Circulation – Low-cost solution for aquaculture.
Why Choose YISA Solar Pumps?
Proven in Harsh Markets – Our solar pumps are widely used in Africa, the Middle East, and Southeast Asia, where sunshine is abundant but electricity is unreliable.
Easy Installation – Plug-and-play design. Connect the pump to solar panels and lower it into the well. No complex inverter setup required.
Low Maintenance – Fewer moving parts than traditional pumps. Spare parts readily available.
Eco-Friendly – Zero carbon emissions, silent operation, no fuel or oil leaks.
OEM/ODM Available – Custom labels, packaging, and even pump color to match your brand.
Order & Support
Sample Order: 1 piece accepted
Warranty: 12–18 months
Lead Time: 15–25 days for bulk order
Export Documents: Commercial invoice, packing list, bill of lading, certificate of origin, etc.
Need a solar pump for your project? Contact us with your well depth, daily water requirement, and solar panel specification. We will recommend the right model within 1 hour.
